| PRODUCT INFORMATION – PRITY PR D | |
|---|---|
| Type of fuel – Dry woods with a moisture content of ≤20% | |
| Energy efficiency class | А+ |
| Energy efficiency index (EEI) | 115 |
| Seasonal space heating energy efficiency (ηs) | 76,0 % |
| Room heating output | 19,7 kW |
| Flue gas temperature at nominal heat output | 226 °C |
| Energy efficiency at the nominal heat output | 85,9 % |
| Emission of combustion products at nominal heat output: | |
| CO (at 13% O2) | 1025,0 mg/Nm3 |
| Dust (at 13% O2) | 30,0 mg/Nm3 |
| NOx (at 13% O2) | 66,0 mg/Nm3 |
| OGC (at 13% O2) | 96,0 mg/Nm3 |
| Exhaust gas mass flow rate | 13,3 g/s |
| Minimum chimney draft | 13 Pa |
| Flue diameter | Ø130 mm |
| Fuel consumption | 5,7 kg/h |

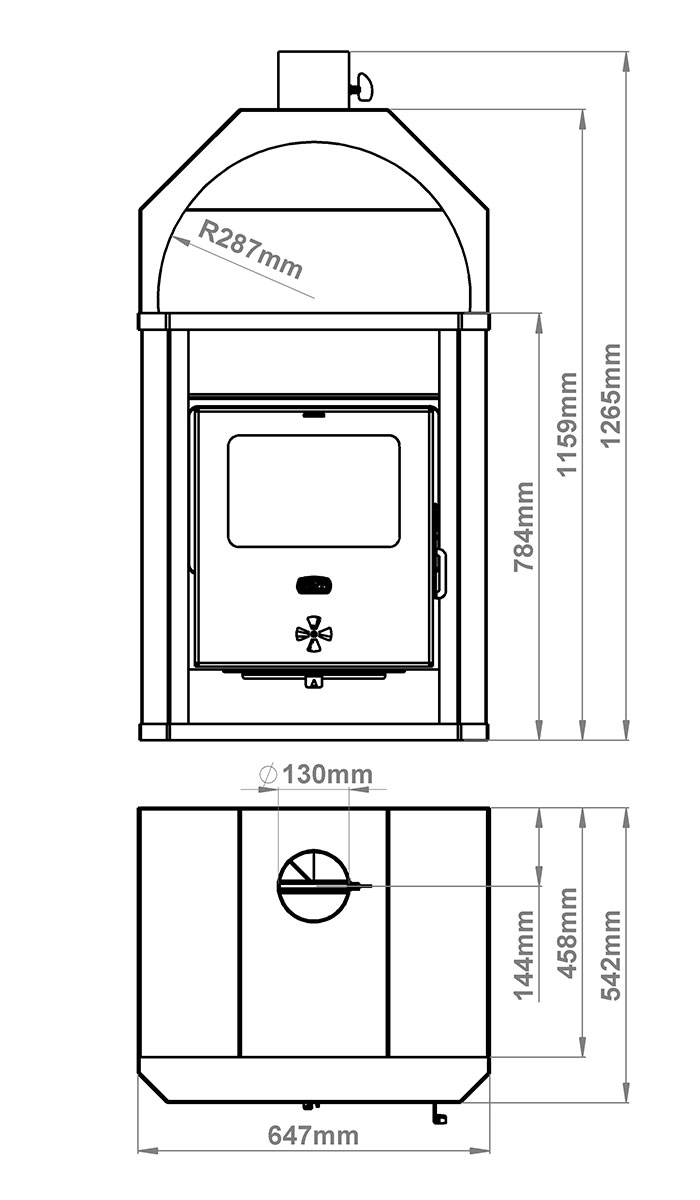

| Overall dimensions, L x B x H | 647 x 542 x 1265 mm |
| Dimensions of the combustion chamber, L x B x H | 570 x 466 x 374 mm |
| Net weight | 129 kg |
| Materials used: Steel, cast iron, concrete, vermiculite, glass, heat-resistant paint. |
|

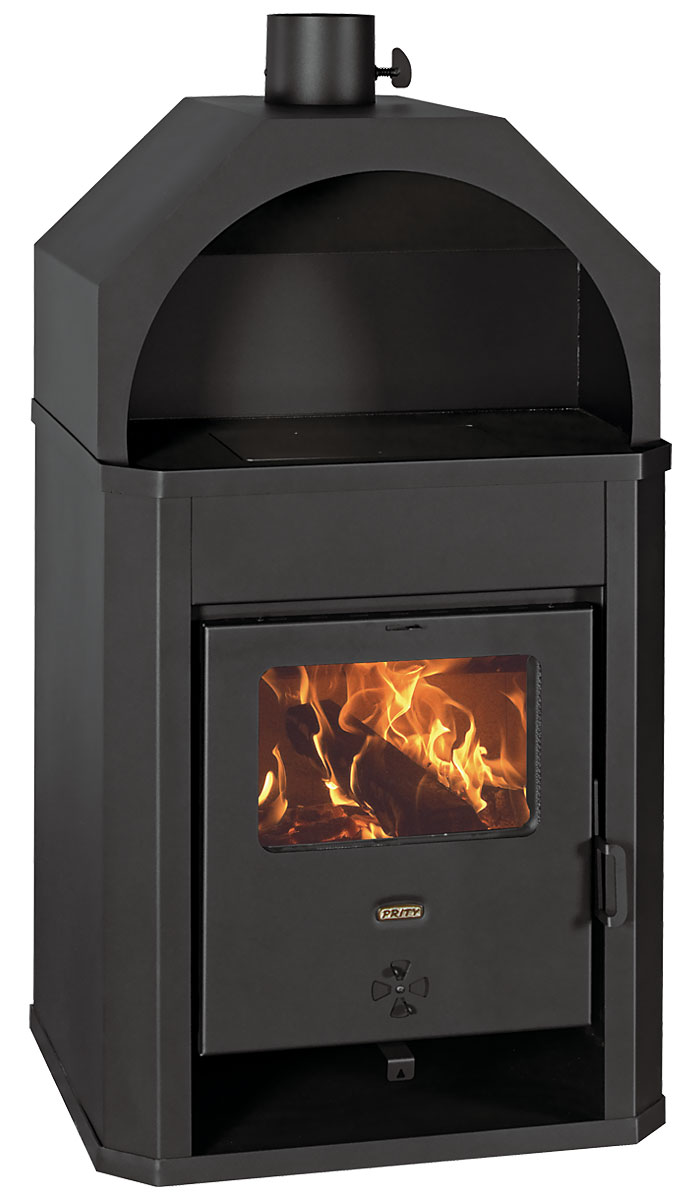

PRITY PR D
PRITYDOCUMENTATION
Energy efficiency label
[EN] Declaration of performance
[EN] Declaration of conformity
[EN] Product Information Sheet
[EN] CE-label
[DE] Leistungserklärung
[DE] Konformitätserklärung
[DE] Produktinformationsblatt
[DE] CE-Kennzeichnung
INSTALLATION MANUAL AND OPERATING INSTRUCTIONS
Technical data
